Color
Natural
Orientation
Right-Hand
Product Name
Road Worn® '70's Telecaster® Deluxe Neck, 21 Medium Jumbo Frets, Maple, "C" Shape
Series
Road Worn®
Road Worn® '70's Telecaster® Deluxe Neck, 21 Medium Jumbo Frets, Maple Fingerboard, C Shape
Regular price
7.899,00 kr
Regular price
7.899,00 kr
7.899,00 kr
Sale price
Unit price
per
inc. MVA*
Road Worn® '70's Telecaster® Deluxe Neck, 21 Medium Jumbo Frets, Maple Fingerboard, C Shape
Road Worn® '70's Telecaster® Deluxe Neck, 21 Medium Jumbo Frets, Maple Fingerboard, C Shape
Regular price
7.899,00 kr
Regular price
7.899,00 kr
7.899,00 kr
Sale price
Unit price
per
inc. MVA*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 1199 kr. Delivery Times: Standard 2-5 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
Nitrocellulose lacquer is a vintage-accurate finish that wears gradually over time, creating a pleasantly worn-in appearance with use. Our Road Worn® Nitro finish is hand-distressed to faithfully recreate the look and feel of a well-loved vintage instrument.

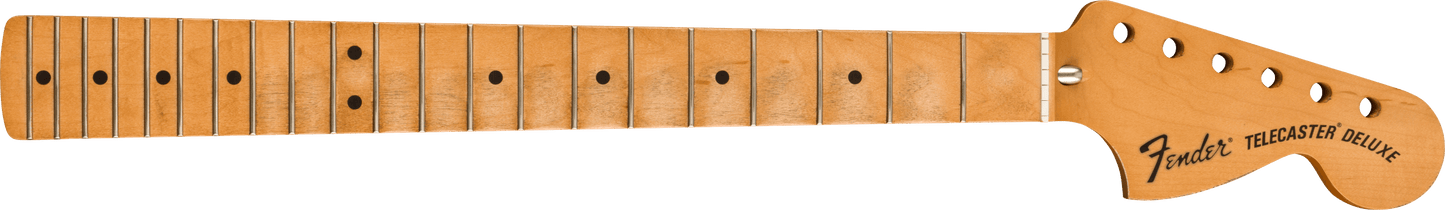

This genuine Fender Telecaster Deluxe neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a medium "C" neck profile and 9.5"-radius maple fingerboard with 21 medium jumbo frets, for the comfortable playing feel of a vintage instrument. Although this neck features a 3-bolt design typical of '70s Teles, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies.
The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Strat® authentic Fender feel, this replacement neck even sports the CBS era logo and a Bullet truss rod on the larger headstock.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Road Worn® Nitro finish maple neck
- Medium "C" profile; 9.5"-radius maple fingerboard
- 21 medium jumbo frets; pre-slotted synthetic bone nut
- Bullet-style truss rod adjustment
General
Hardware
Tuner Mounting Config
'70s Vintage-Style 2-Screw
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Vintage
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Road Worn® Nitrocellulose Lacquer
Neck Material
Maple with Walnut Stripe
Neck Mounting
3 or 4-Bolt Configurable (Only two pilot holes drilled)
Neck Shape
Medium "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .900" (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
